Strong, Durable Materials • Smooth, Quiet Operation • Easy to Install • Multiple Applications • Low Maintenance • Minimal Back Room Required • Rust Resistant • Complements Existing Buildings.
Doors Include:
- Curtain: 26 Gauge Galvanized Steel Curtain with Baked Epoxy Primer and Polyester Topcoat.

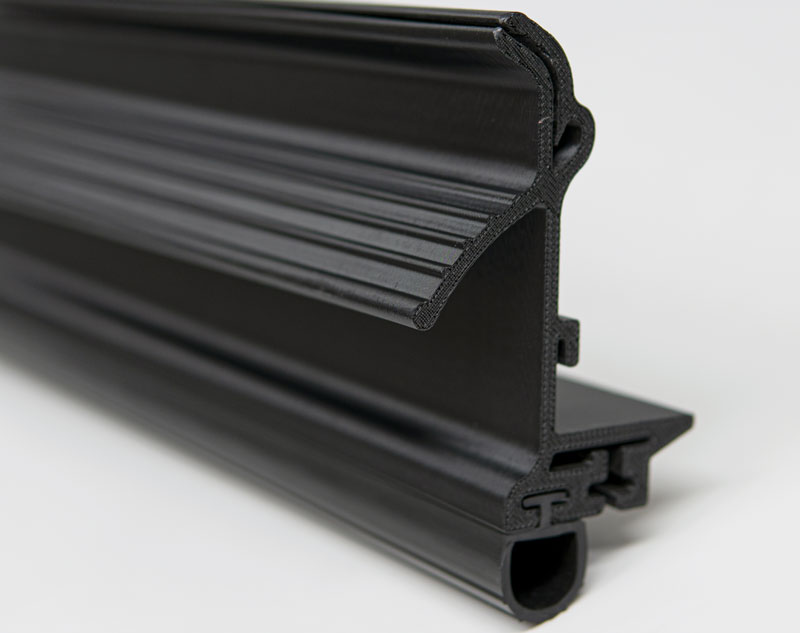

- Bottom Bar: 2” x 1-1/2” 16 Gauge Galvanized Steel Angle Fastened to Aluminum Retainer with Bulb Astragal.
- Locks: Hardened Steel Slide Bolt Attached to Exterior of Curtain Suitable for Padlocking.
- Drum/Axle Assembly: 30 Gauge Topsheet Attached to 20 Gauge Galvanized Drums with Ball Bearings, Supported by 14 Gauge 1” O.D. Galvanized Steel Tubing.
- Guides: 18 Gauge Galvanized Steel Channels (2” Deep Per Side) with PVC Wearstrips.
- Operation: Manual/Push-Up (Rope) Up to 10′ Wide x 10′ High.

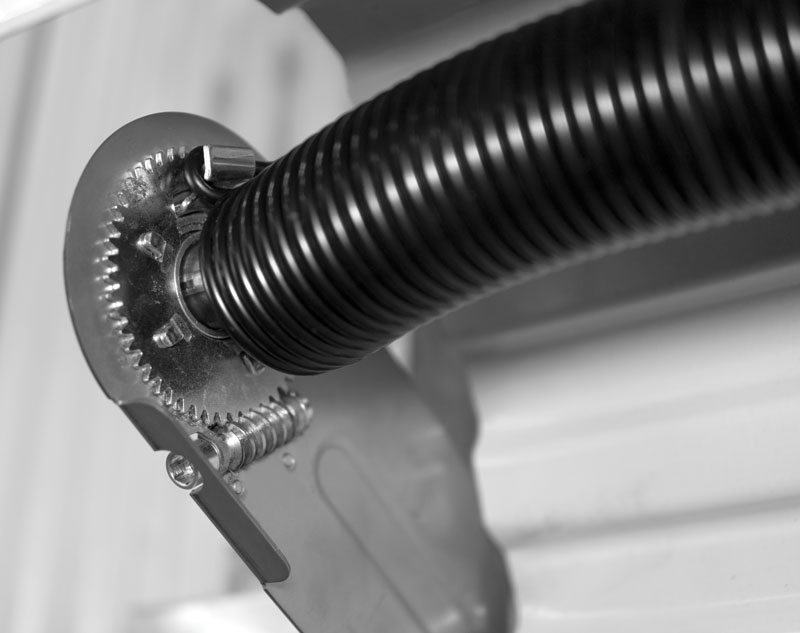

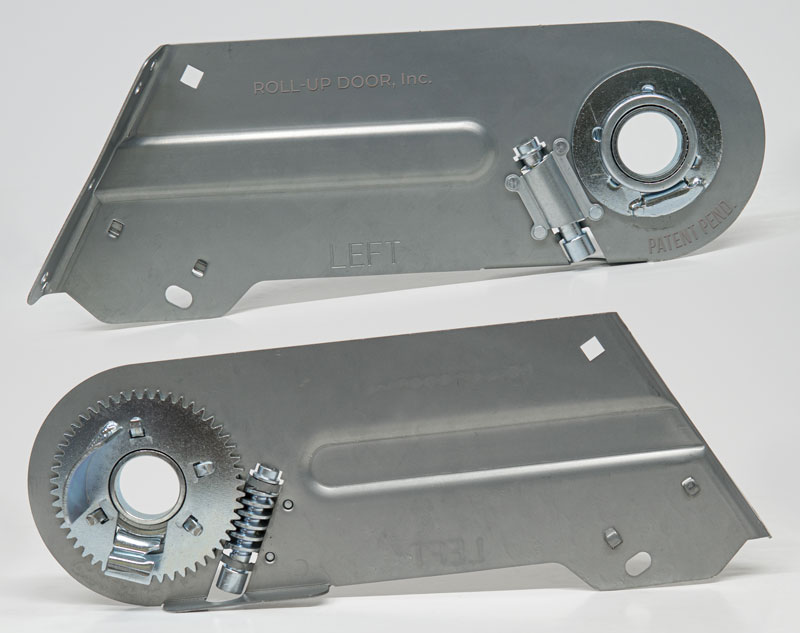

- Tension Hardware Assembly: Cast Steel Tension Wheel Attached to Door Axle Interacts with the Tension Pawl Mounted on the Support Bracket for Spring Tension Adjustment.
- Hardware: For Mounting to Wood (Steel or Block/Masonry Available Upon Request.

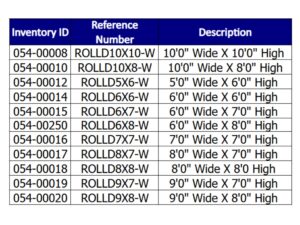

- Measurements: Based on Rough Opening.
